Less Space, More Possibilities
About metapark
Established in 1995 by Mr. Pramod Rane. MetaPark is a subsidiary of SEPL, started with a small factory in Bhosari. Today the group has four manufacturing facilities situated in Bhosari and Chakan.
MetaPark is led by second generation entrepreneur Mr. Siddharth Rane in the field of manufacturing of sheet metal fabricated, stamped and machined components.
At MetaPark our speciality is to develop various parking solutions to solve the current problems faced by the consumers of parking their own car.
As day by day the vehicles are increasing and the cities like Mumbai, Pune, Hyderabad, Bangalore are facing problems at residential societies, offices, public place, etc. To cater this need we deliver products and solution like Tower parking, stack parking, puzzle parks, etc.
PRODUCTS AND SERVICES we provide
We design innovative and space-efficient parking systems tailored to the needs of modern urban environments. Each product is crafted with precision, using high-quality materials and the latest technology to ensure durability, ease of use, and long-term value.

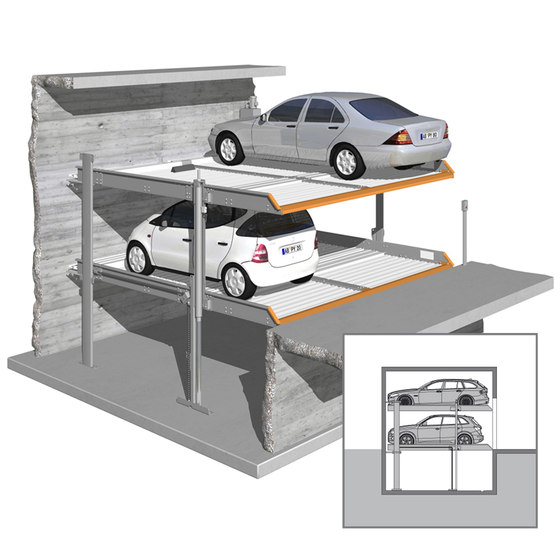

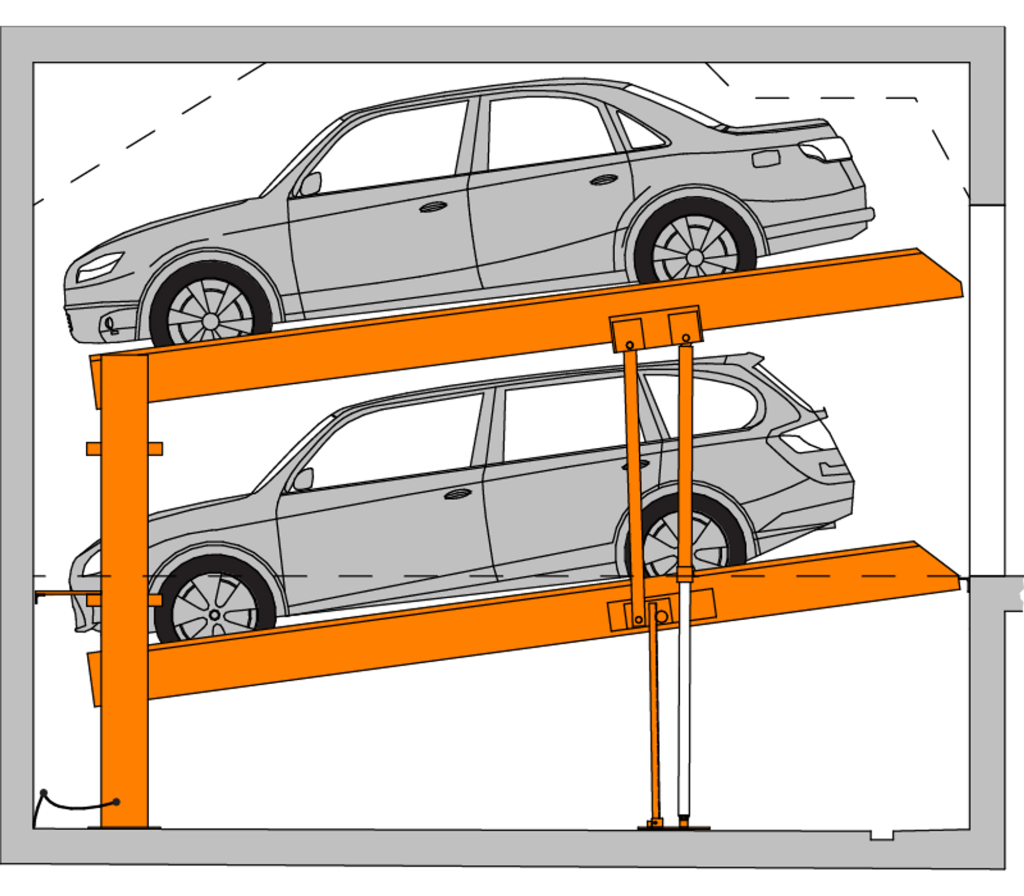

1. Hydraulic Level Stack Parking System
1. Hydraulic Level Stack Parking System
Features
- Easy to operate
- Sensors for Safety
- More turning radius for ground floor car
- Minimum Power Consumption
- Less Maintenance
Technical Specification
| SUITABLE CAR |
LENGTH - 5000MM WIDTH - 2000MM (OPEN MIRROR) HEIGHT - 2000MM OG & 1700 1ST FLOOR WEIGHT - 2000KG |
| HYDRAULIC POWRPACK | 1.5KW |
| TRAVEL SPEED | 4MTR./MIN. |
| POWER SOURCE | MAIN AC 415V, 3PHASE, 50HZ |
| OPERATION | KEY SWITCH / PUSH BUTTON |
| SAFETY FEATURES |
1) MECHANICAL LOCK 2) LIMIT SWITCH |
Hydraulic Stacker G+1
| LENGTH | 4000MM |
| WIDTH | 2500MM |
| HEIGHT | 4200MM |
Hydraulic Stacker G+2
| Hydraulic Stacker G+2 | |
|---|---|
| LENGTH | 5000MM |
| WIDTH | 2600MM |
| HEIGHT | 6000MM |
Hydraulic Pit Stack G+1–1
| Hydraulic Pit Stack G+1–1 | ||
|---|---|---|
| LENGTH | 2600MM | Pit – 2500MM |
| WIDTH | 5500MM | |
| HEIGHT | 4200MM | |

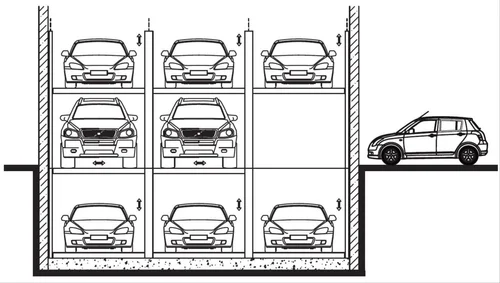

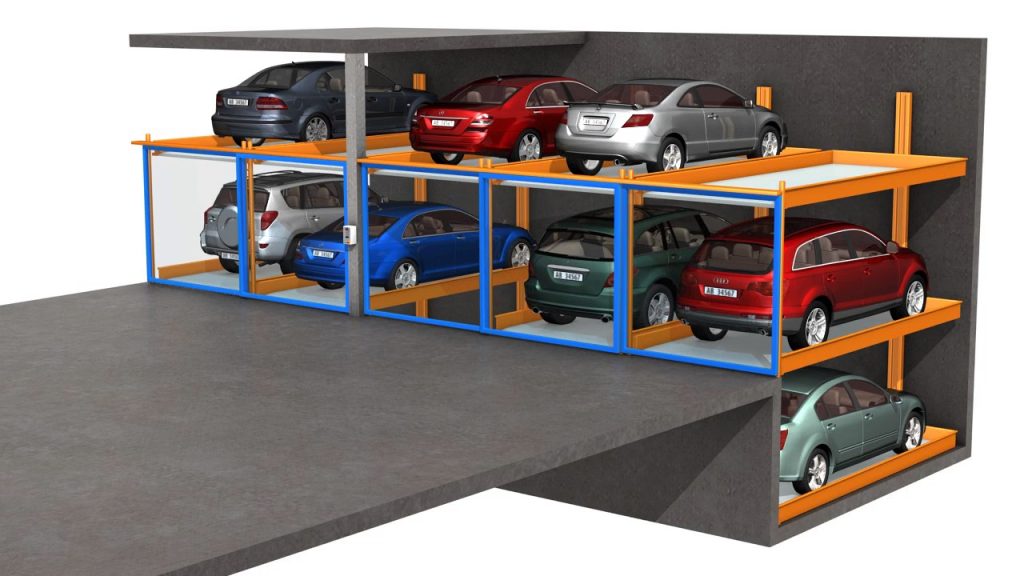

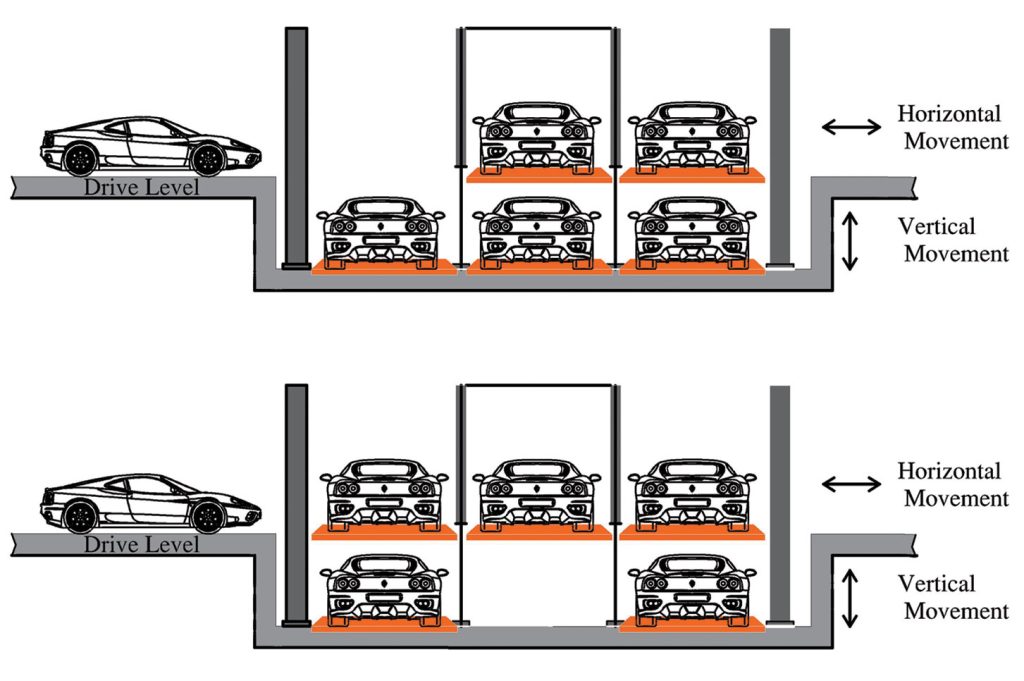

2. Pit Puzzle Parking System
2. Pit Puzzle Parking System
Features
- Effective use of the pit
- Fully Automatic system
- Reduced operation time due to multiple entries
- Sensors for safety
Technical Specification
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CARS | SUV | ON GROUND |
| SEDAN | ABOVE GROUND & PIT | |
| SUITABLE CAR | LENGTH | 5000MM |
| LENGTH | 4800MM IN PIT | |
| WIDTH | 2000MM (OPEN MIRROR) | |
| HEIGHT | 2000MM ON GROUND (SUV) | |
| HEIGHT | 1700MM ABOVE GROUND (SEDAN) | |
| HEIGHT | 1550MM IN PIT | |
| WEIGHT | 2000KG | |
| LIFTING MOTOR | 2.2KW (3HP) | |
| TRAVEL SPEED | 4MTR./MIN. | |
| HORIZONTAL TRAVEL | MOTOR | 0.37KW (0.5HP) |
| TRAVEL SPEED | 5-6 MTR./MIN. | |
| POWER SOURCE | MAIN AC 415V, 3PHASE, 50HZ | |
| CONTROL | PLC | |
| OPERATION | PUSH BUTTON / SMART CARD / LCD SCREEN | |
| SAFETY FEATURES | 1) SAFETY SENSOR | |
| 2) EMERGENCY STOP SWITCH | ||
| 3) LIMIT SWITCH | ||
Hydraulic Pit Puzzle G+1–1
| Hydraulic Pit Puzzle G+1–1 | ||
|---|---|---|
| LENGTH | 7600MM | Pit – 2500MM |
| WIDTH | 5500MM | |
| HEIGHT | 4200MM | |
Motorised Pit Puzzle G+4–1
| Motorised Pit Puzzle G+4–1 | ||
|---|---|---|
| LENGTH | 7600MM | Pit – 2500MM |
| WIDTH | 6300MM | |
| HEIGHT | 11000MM | |

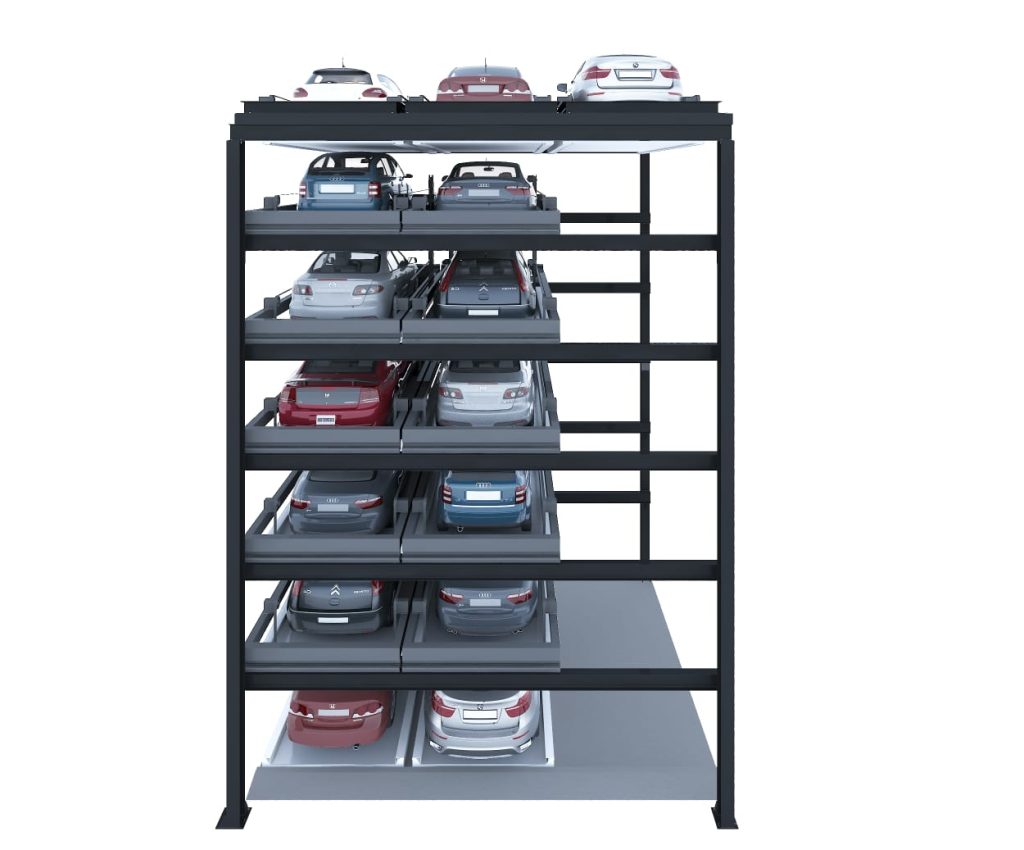

3. Puzzle Parking System
3. Puzzle Parking System
Features
- Fully Automatic system
- Reduced operation time due to multiple entries
- Can be built up to 6 levels x 6 Slots (31 Cars System)
- Sensors for safety
- Optimum utilization of space
- Customised as per requirment
Technical Specification
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CARS | SUV | ON GROUND |
| SEDAN | ABOVE GROUND | |
| SUITABLE CAR | LENGTH | 5000MM |
| WIDTH | 2000MM (OPEN MIRROR) | |
| HEIGHT | 2000MM ON GROUND (SUV) | |
| HEIGHT | 1700MM ABOVE GROUND (SEDAN) | |
| WEIGHT | 2000KG | |
| LIFTING MOTOR | 2.2KW (3HP) | |
| TRAVEL SPEED | 4MTR./MIN. | |
| HORIZONTAL TRAVEL MOTOR | MOTOR | 0.37KW (2HP) |
| TRAVEL SPEED | 5-6 MTR./MIN. | |
| POWER SOURCE | MAIN AC 415V, 3PHASE, 50HZ | |
| CONTROL | PLC | |
| OPERATION | PUSH BUTTON / SMART CARD / LCD SCREEN | |
| SAFETY FEATURES | 1) SAFETY SENSOR | |
| 2) EMERGENCY STOP SWITCH | ||
| 3) LIMIT SWITCH | ||
Motorised Puzzle G+4 Table
| Hydraulic Puzzle G+1 | |
|---|---|
| LENGTH | 7600MM |
| WIDTH | 5500MM |
| HEIGHT | 4200MM |
Motorised Pit Puzzle G+4–1
| Motorised Puzzle G+4 | |
|---|---|
| LENGTH | 7600MM |
| WIDTH | 6300MM |
| HEIGHT | 11000MM |

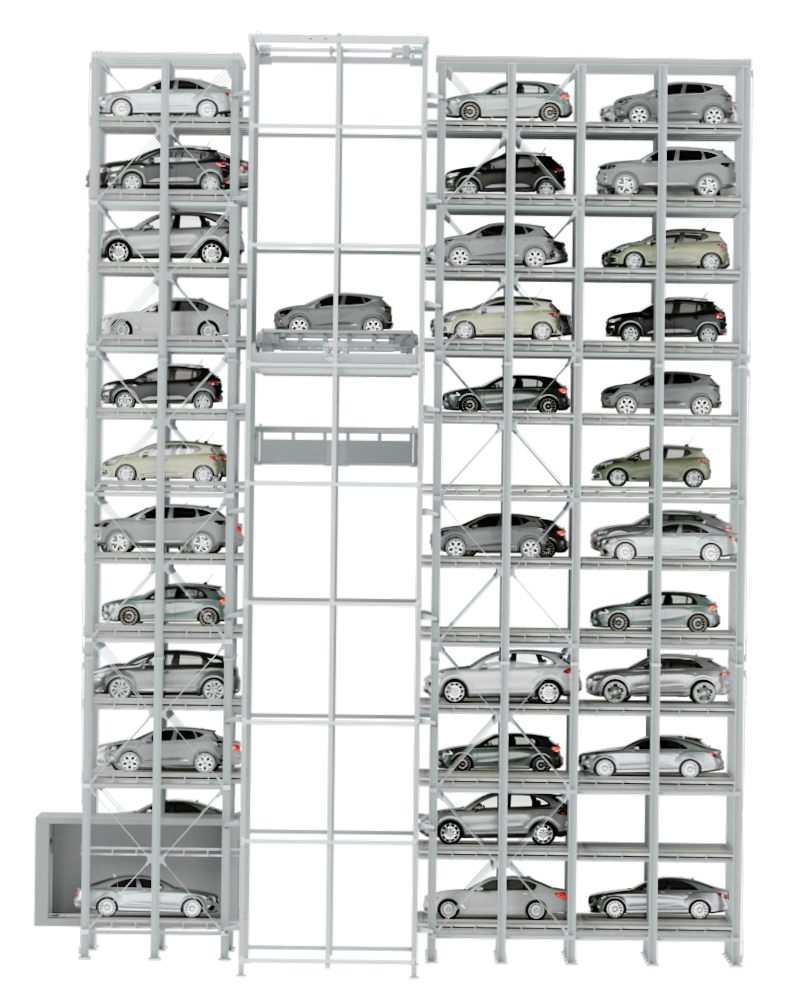

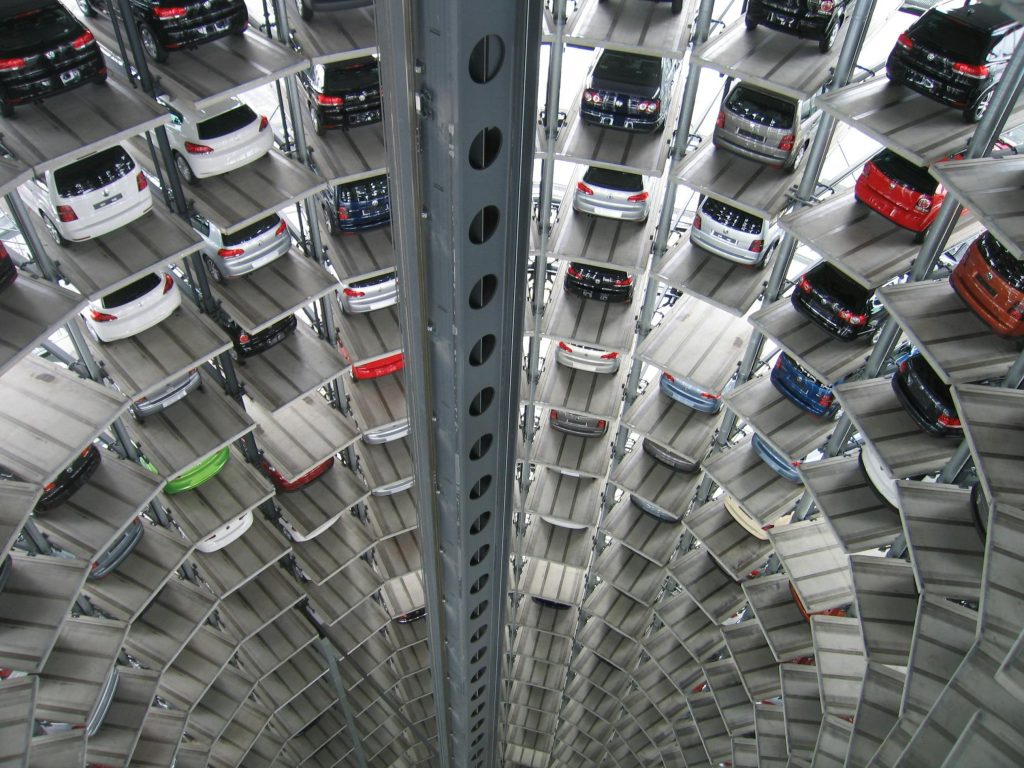

4. Tower Parking System
4. Tower Parking System
Features
- Optimum utilization of space
- Manual/Automatic mode Sensors for safety and orientation of car
- Can be customized as per equirement Easy maintenance
Technical Specification
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| SUITABLE CAR | LENGTH | 5000MM |
| WIDTH | 2000MM (OPEN MIRROR) | |
| HEIGHT | 2000MM (SUV) | |
| HEIGHT | 1700MM (SEDAN) | |
| WEIGHT | 2000KG | |
| LIFTING MOTOR | 22KW (30HP) | |
| LIFTING SPEED | 45–60 MTR./MIN. | |
| HORIZONTAL TRAVEL | 1.5KW (2HP) | |
| TRAVEL SPEED | 2–12 MTR./MIN. | |
| POWER SOURCE | MAIN AC 415V, 3PHASE, 50HZ | |
| CONTROL | PLC | |
| OPERATION | SMART CARD / LCD SCREEN | |
| SAFETY FEATURES | 1) SAFETY SENSOR | |
| 2) EMERGENCY STOP SWITCH | ||
| 3) LIMIT SWITCH | ||
| 4) MIRROR | ||
Tower Parking System 1x1
| Tower Parking System 1x1 | |
|---|---|
| LENGTH | 7600MM |
| WIDTH | 6300MM |
| HEIGHT | 27000MM |
| PIT | 2000MM |
Tower Parking System 2x1
| Tower Parking System 2x1 | |
|---|---|
| LENGTH | 9900MM |
| WIDTH | 6300MM |
| HEIGHT | 27000MM |
| PIT | 2000MM |
Tower Parking System 3x2
| Tower Parking System 3x2 | |
|---|---|
| LENGTH | 14700MM |
| WIDTH | 6300MM |
| HEIGHT | 27000MM |
| PIT | 2000MM |
WHY CHOOSE US
Our systems are designed to be flexible and adaptable, catering to the unique requirements of each client and parking environment, while being rigorously tested to ensure consistent and reliable performance even in demanding conditions.
Advanced Technologies
We use modern, cutting-edge tools to improve performance. This keeps our systems fast, smart, and up to date.
Customizable Solutions
Our systems can be tailored to fit your exact needs. No matter the setup, we adapt to your environment.
Exceptional Support
We’re here to help whenever you need us. Friendly, fast, and reliable service is our promise.
Proven Reliablity
Our solutions are tested and trusted in real conditions. They work smoothly, even in tough environments.
Cost-Effective
Get top-quality systems without high costs. We offer great value without cutting corners
The Parking Experts Since 1995
Modern, well-equipped factories
Skilled team and expert craftsmanship
Strict quality checks at every stage
Efficient and scalable production
Proudly made in India
FREQUENTLY ASKED QUESTIONS (FAQS)
Are your parking systems suitable for residential and commercial spaces?
Yes, our systems are ideal for both residential societies and commercial spaces like offices, malls, and public places. We offer customizable solutions that fit various site layouts and usage needs.
How reliable are MetaPark’s parking systems in day-to-day use?
Our systems are rigorously tested and proven to perform reliably even in demanding conditions. With decades of manufacturing experience and proven engineering, we ensure long-term, trouble-free performance.
Can your systems be customized for unique site conditions or space constraints?
Absolutely. We specialize in tailoring our parking systems to match your site-specific requirements. Whether space is limited or the layout is irregular, we can design a solution that works.
What kind of support does MetaPark provide after installation?
We offer full support including installation, training, and after-sales service. Our team is dedicated to ensuring your system runs smoothly with regular maintenance and fast response to service needs.
How much space can I save with your parking systems?
Our solutions are designed to maximize parking capacity by utilizing vertical space. Depending on the system, you can park 2 to 6 times more vehicles in the same area compared to traditional parking.
Are your parking systems safe and easy to use?
Yes, safety and user-friendliness are top priorities. Our systems are equipped with safety features like sensors, locking mechanisms, and user-friendly controls to ensure safe and easy operation for all users.
